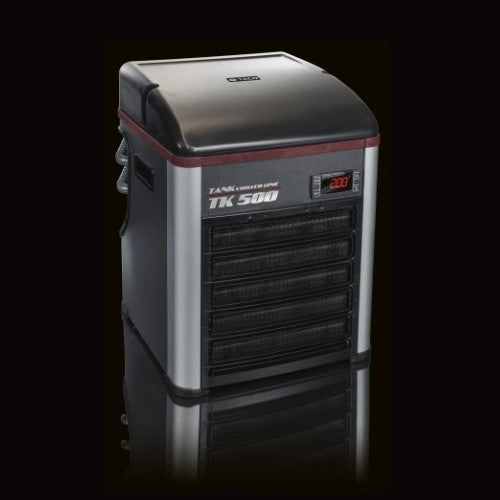

Teco TK 500 Chiller
MADE IN ITALY design and production.
EFFICIENT COOLING TECHNOLOGY
- The exclusive use of high-quality compressors and of the titanium coaxial heat exchanger, ensures high performance and low energy consumption. The set of technologies used allows you to decrease noise levels and achieve the highest COP (Coefficient Of Performance) contributing to significant energy savings.
- Intuitive setting of functions and accurate temperature detection, resolution 0.1°C/0.2°F. The setting range is 5°-35°C (41°F-95°F) and there is a closed loop temperature control system with high accuracy and extremely tight differential (0.5°C/1°F). Displayed temperature is in °C or °F and there are security alarms.
- The chiller, with its innovative design, is characterized by a solid structure designed to guarantee a perfect protection against rust. The functionality of the shape and the compact size are also suitable for confined spaces.
- The innovative TECO air SYSTEM (Figure 1) makes it possible to rotate the conveyor, thus ensuring optimal air exchange for the chiller and heat output from the cabinet. Quick and easy magnetic air filter maintenance. Moreover, the innovative “pinch off plier” allows easy removal of the chiller for maintenance. The standard built-in heater ensures continuous and optimal maintenance of temperature in all use conditions.
|Supply||230V-50Hz (others supplies available on quantity)|
|Cooling Power Consumption||225 w|
|Min. & Max Flow Rate||400 lt/h – 800 lt/h|
|Tank Size||up to 500 lt
(water temp. 25°C – Room temp. 30°C – Heating load 0,5 w / lt)
|Dimensions||mm. 310 x 310 x 416 (h)|
|Dimensions||in. 12.2 x 12.2 x 16.38 (h)|
|Connections||fitting 3/4″ – 16mm int. tube diameter|
